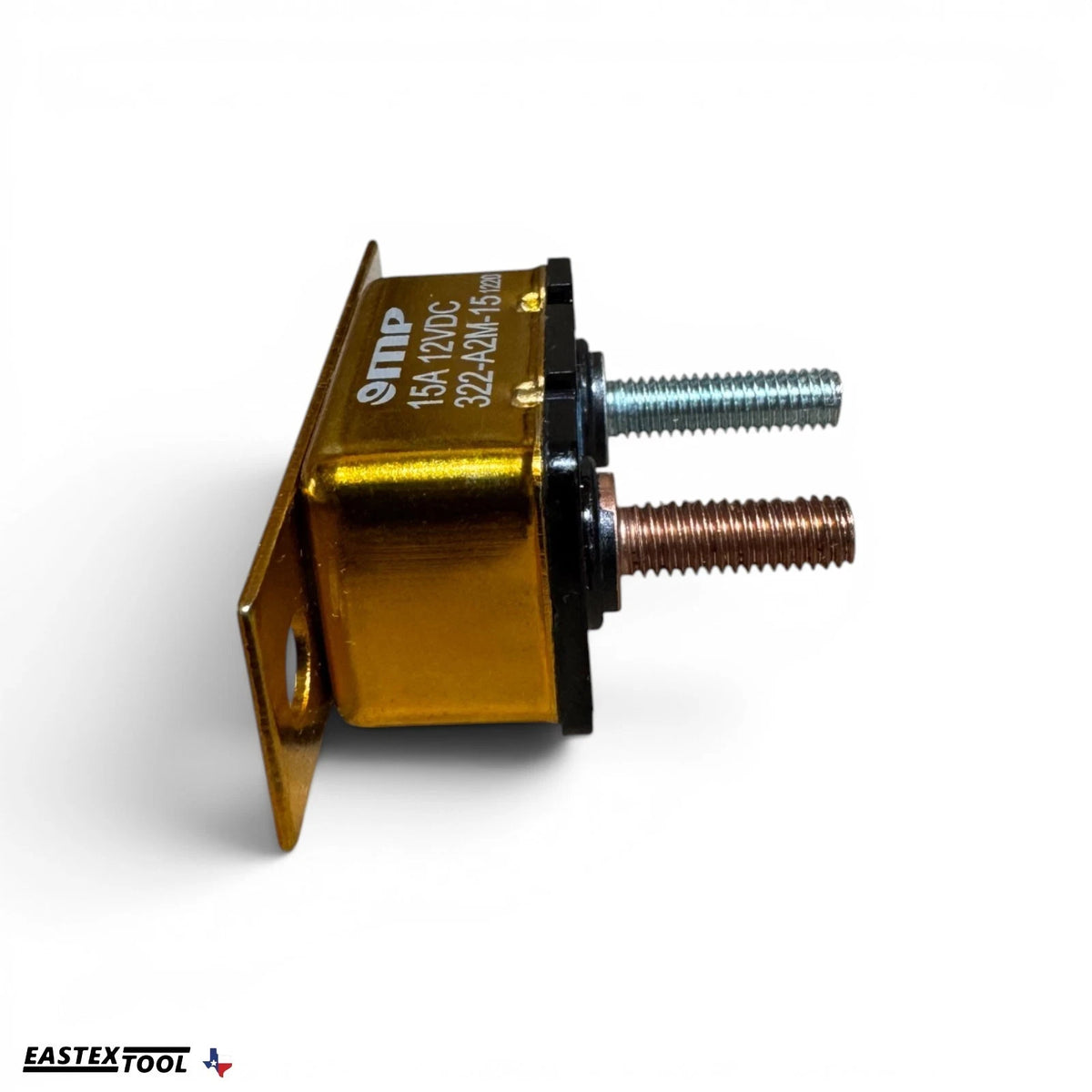

Mechanical Products 322-A2M-15 Circuit Breaker, 15A 14VDC Type 2 Modified Reset

This is a premium-grade, Series 32 single-pole thermal circuit breaker engineered for reliable overcurrent protection in automotive, marine, and low-voltage DC commercial electrical systems.

The Type 2 Modified Reset configuration provides a smart safety mechanism: when an overcurrent event is sensed, the breaker trips open. An internal diagnostic resistor keeps the contacts safely open as long as the system voltage remains applied. It will reset only after you manually switch off the power supply, avoiding hazardous and continuous cycling.

• Smart Modified Reset: Type II configuration holds the circuit open securely under load until the source power is disconnected.

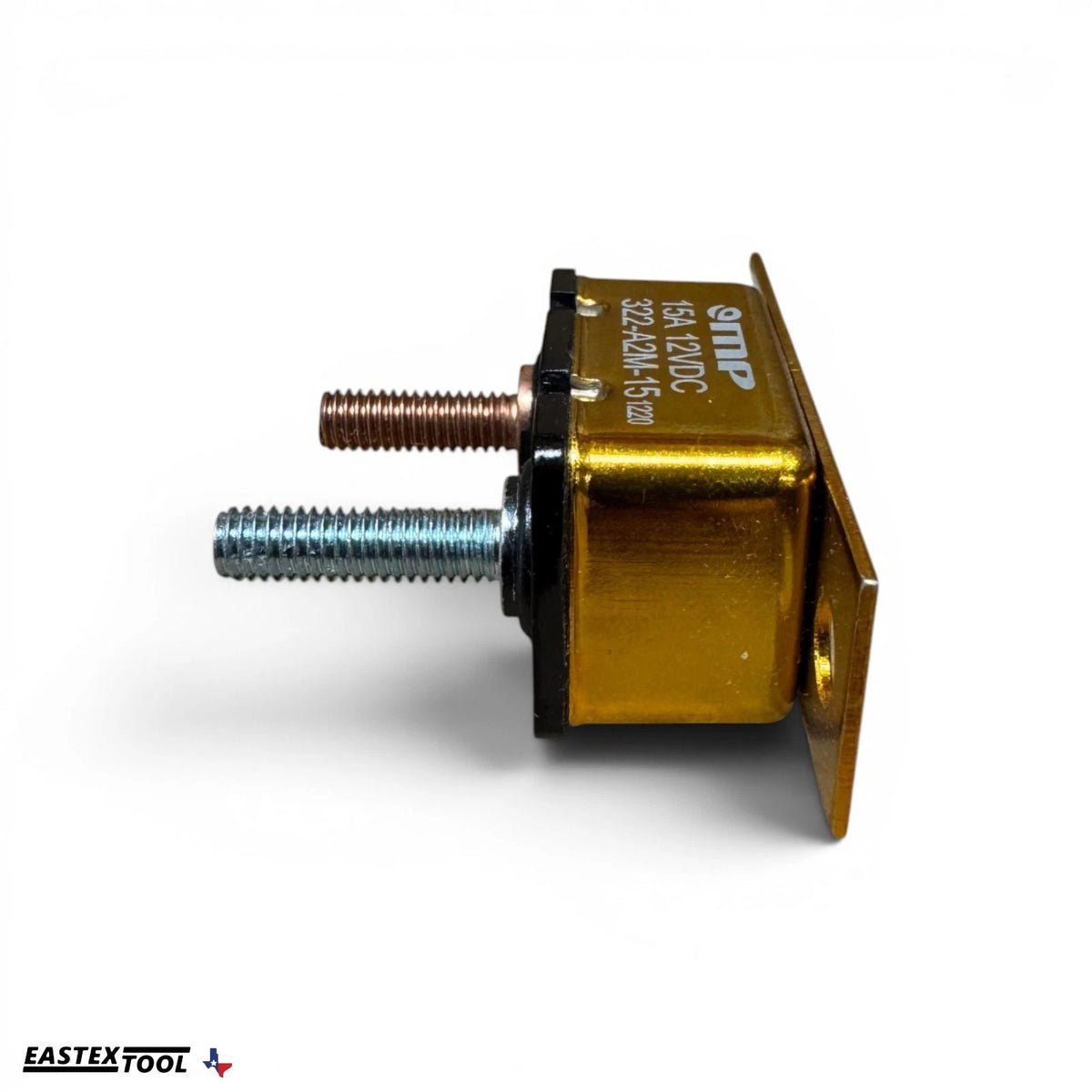

• Metal Cover Housing: Equipped with a solid metal cover assembly for maximum physical protection and heat dissipation.

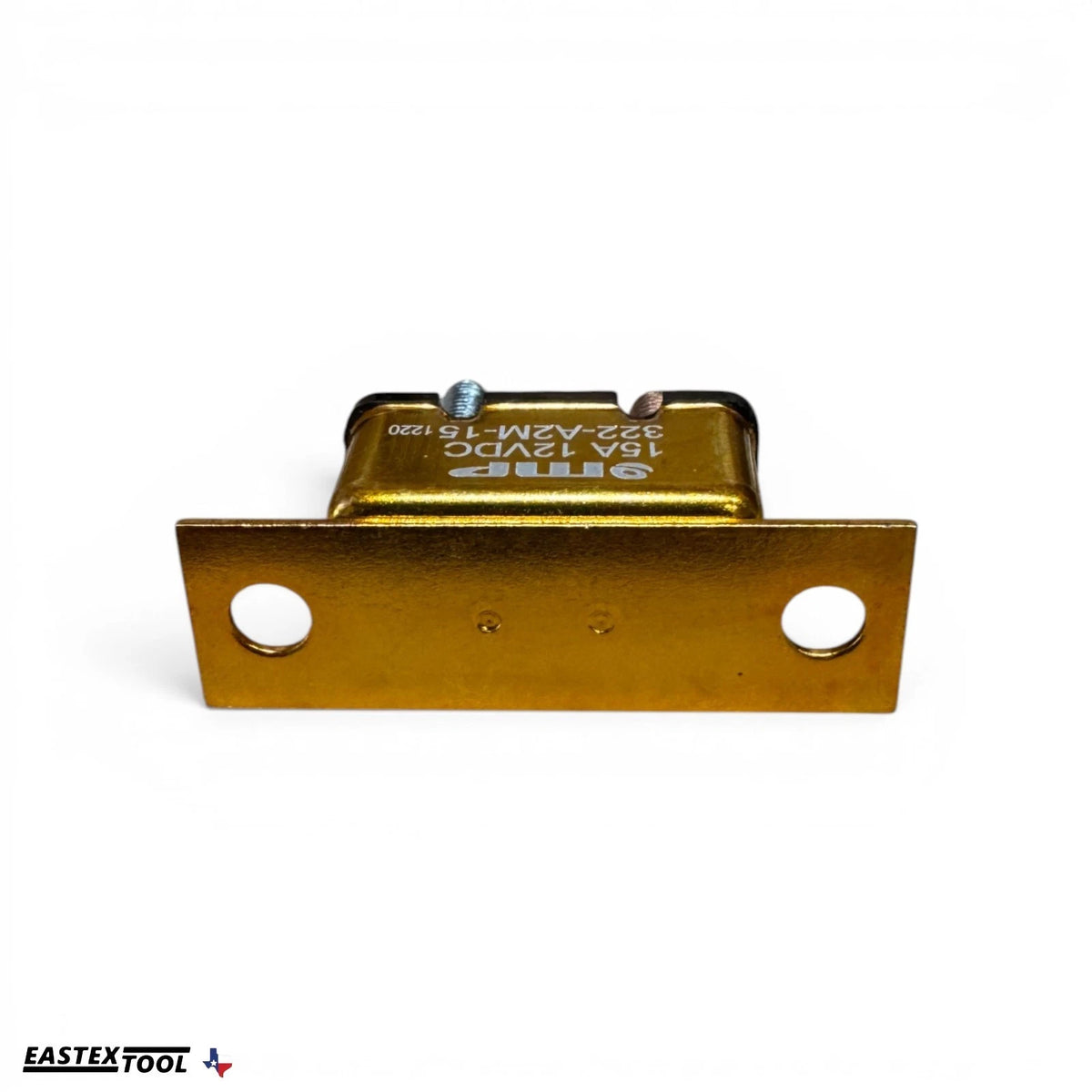

• Convenient Parallel Bracket: Features pre-installed parallel side-mounting tabs (with .23" mounting holes) for simple, secure flush-mount installation.
• Heavy-Duty Stud Terminals: Outfitted with dual robust #10-32 threaded terminal studs to ensure stable, low-resistance connections.

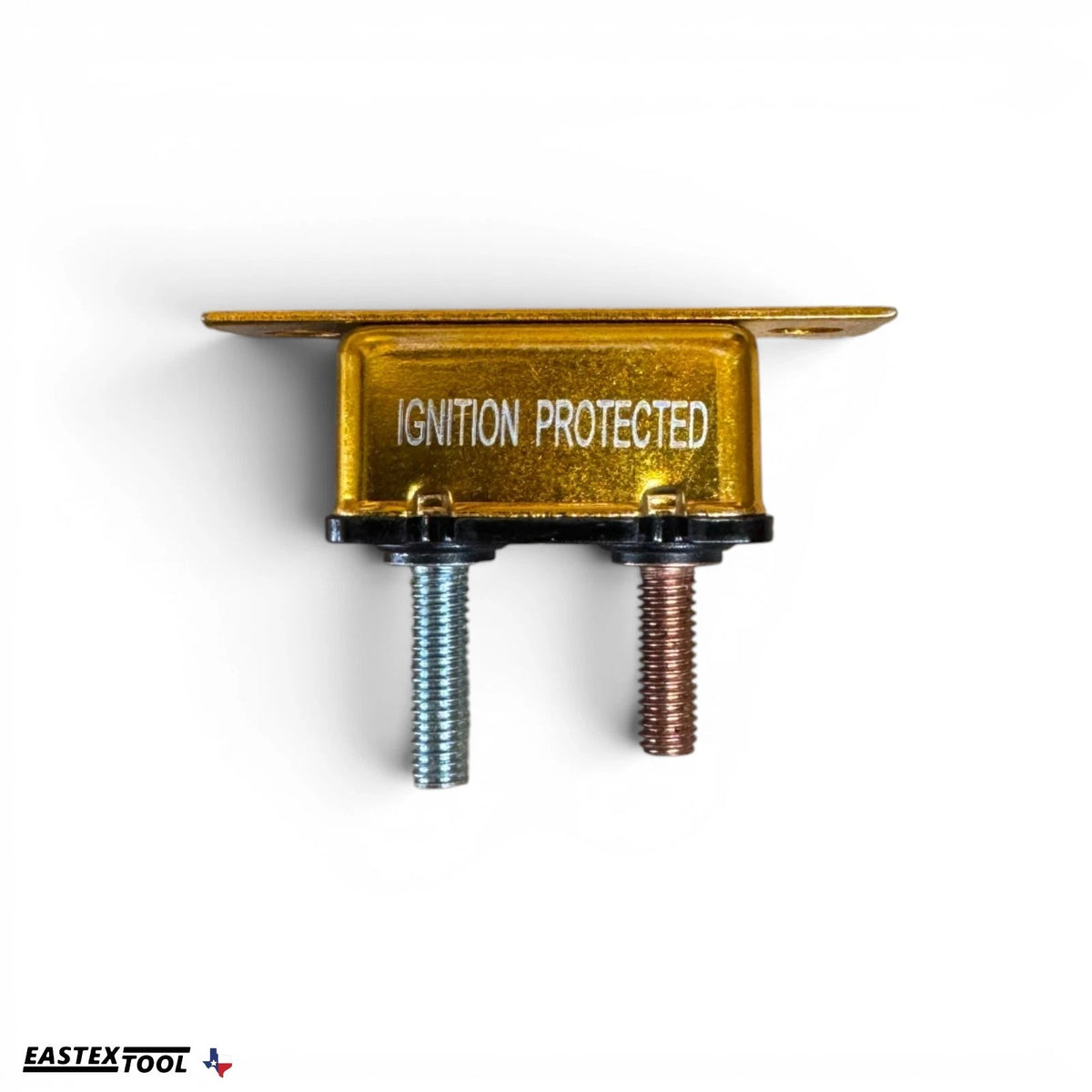

• Industrial Compliance: Built to rigorous specifications, meeting SAE J553 and SAE J1171 ignition protection standards.

• Current Rating: 15 Amps
• Voltage Rating: 14V DC (highly compatible with standard 12V automotive and marine batteries)
• Interrupt Capacity: 2,500A @ 12VDC
• Operating Temperature: -40°C to +85°C
• Cross-Reference Compatibility: Fits as a direct drop-in replacement for CBP-15B or 122A15-A2M legacy components
